Sectional Sno-PusherTM
Competitive edge plowing
7 key features of the
Sectional Sno-PusherTM
-

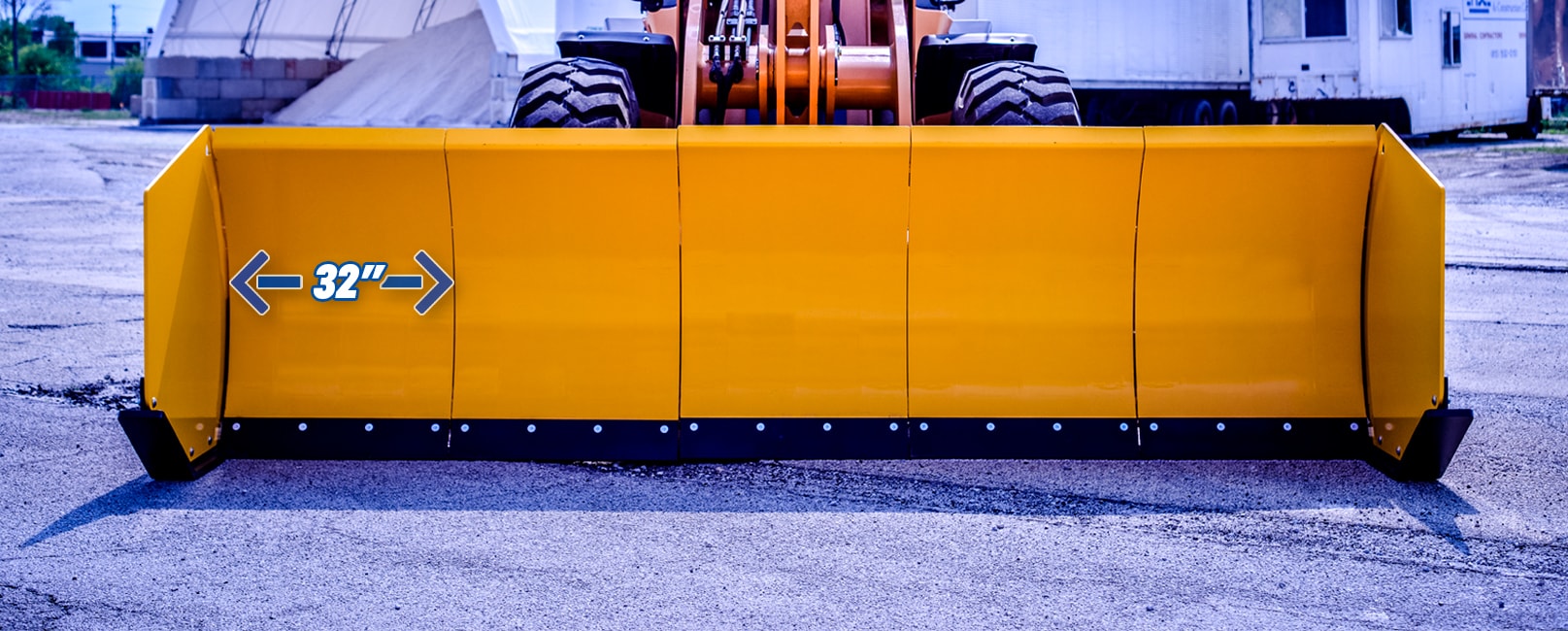

Patented Sectional Moldboard DesignComprised of 32-inch independent sections on the HD models, 30-inch on the LD models and 24-inch on the CD models. to let the plow contour to the grade of any surface for cleaner passes. -

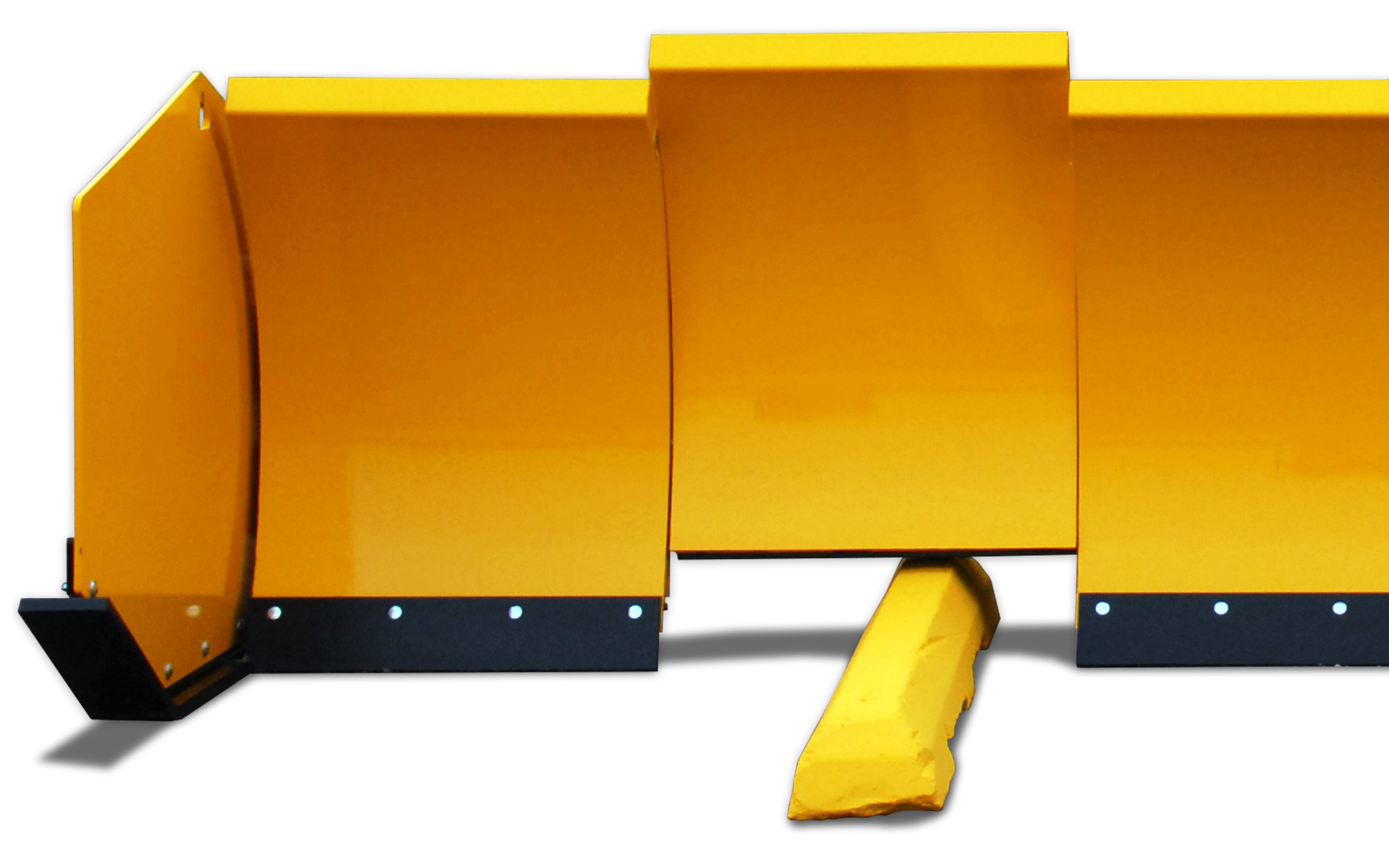

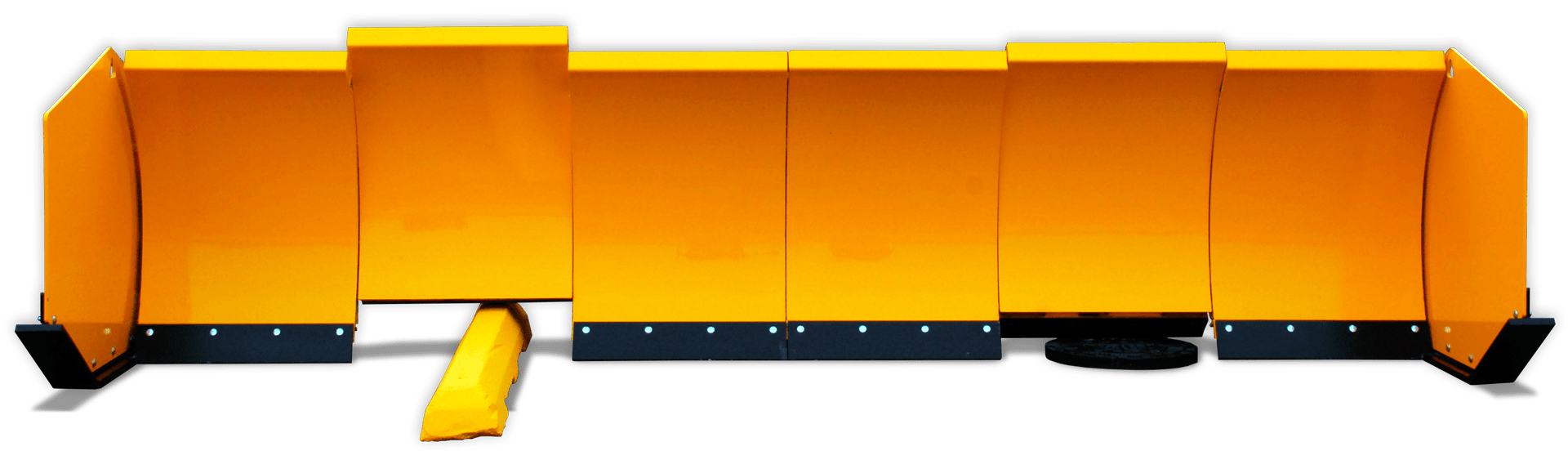

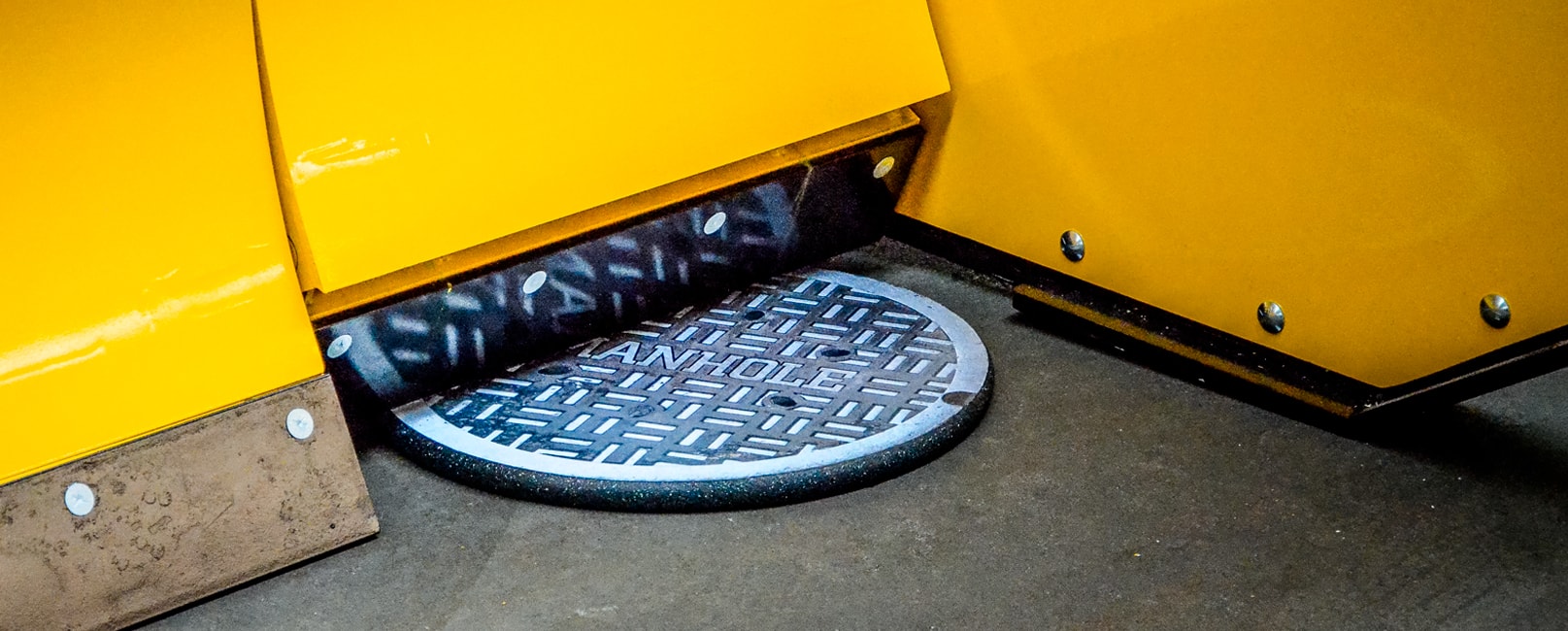

Spring-loaded Trip EdgesEach individual moldboard section independently trips over unseen obstacles beneath the snow. -

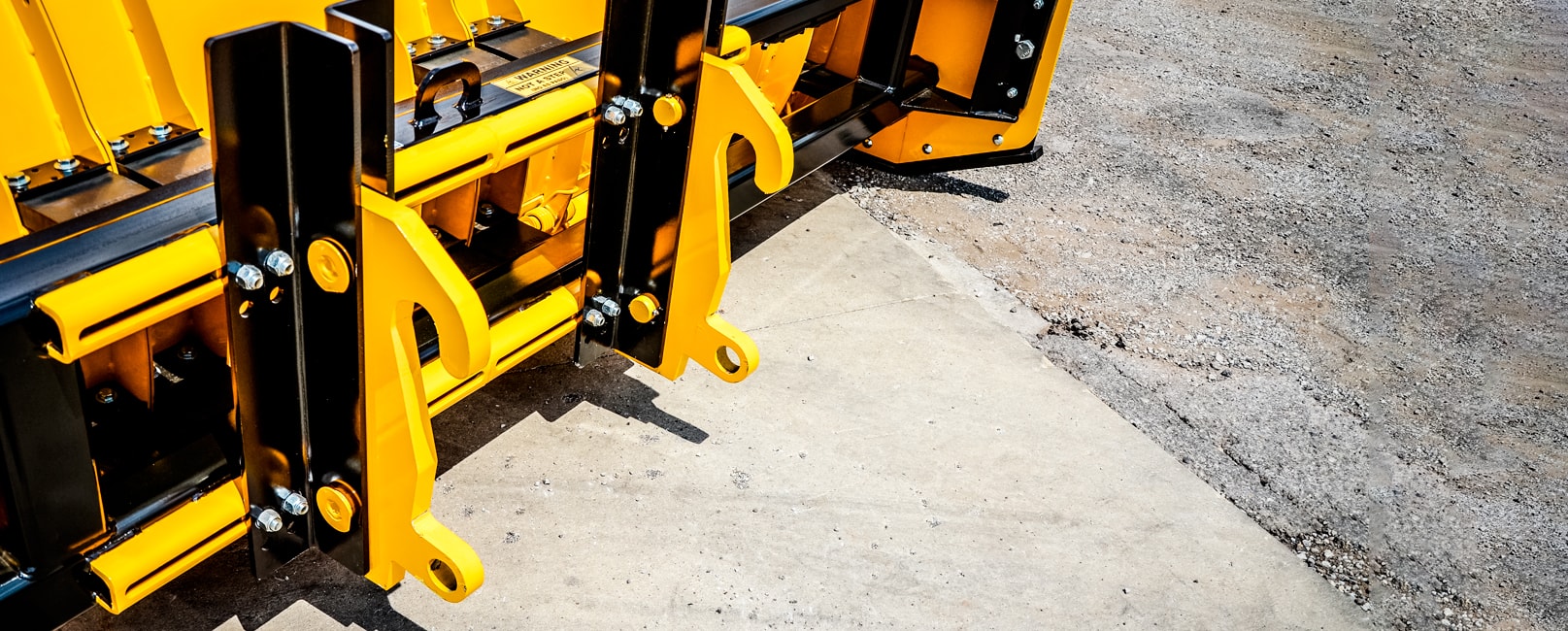

Patented Slip-Hitch™ Universal Coupler SystemWith the patented floating Slip-Hitch™ design, just drop the pusher and go! It will automatically adjust and then continuously readjust to the pavement height, ensuring premium traction, reduced drag and optimum pushing power. -

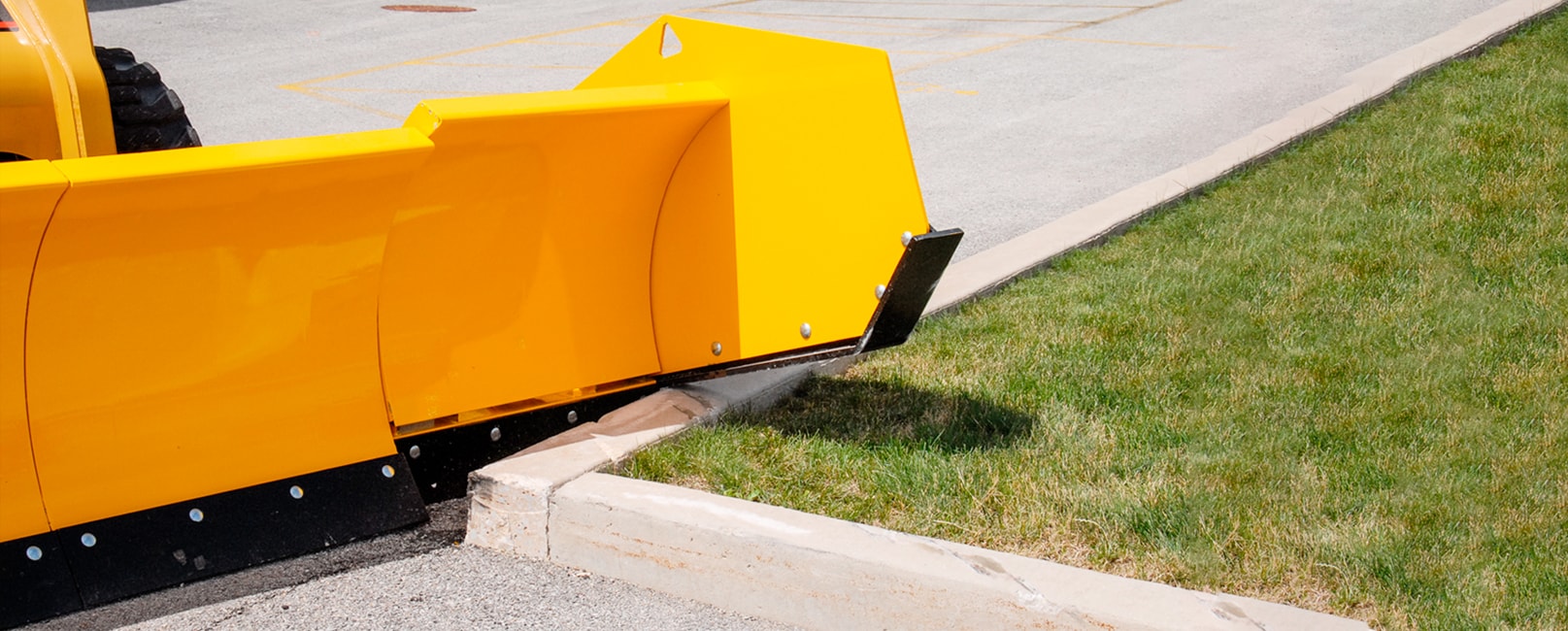

Mechanical Side PanelsThe patented design of the Sectional Sno-Pusher™ features mechanical side panels that lift up to 9 inches high to glide over and around obstacles, providing 75% higher clearance height than competitive models. -
AR-400 Steel Cutting EdgesArctic's AR-400 hardened steel cutting edges scrape compacted snow and ice down to pavement, eliminating follow-up plowing and reducing your salt usage. -

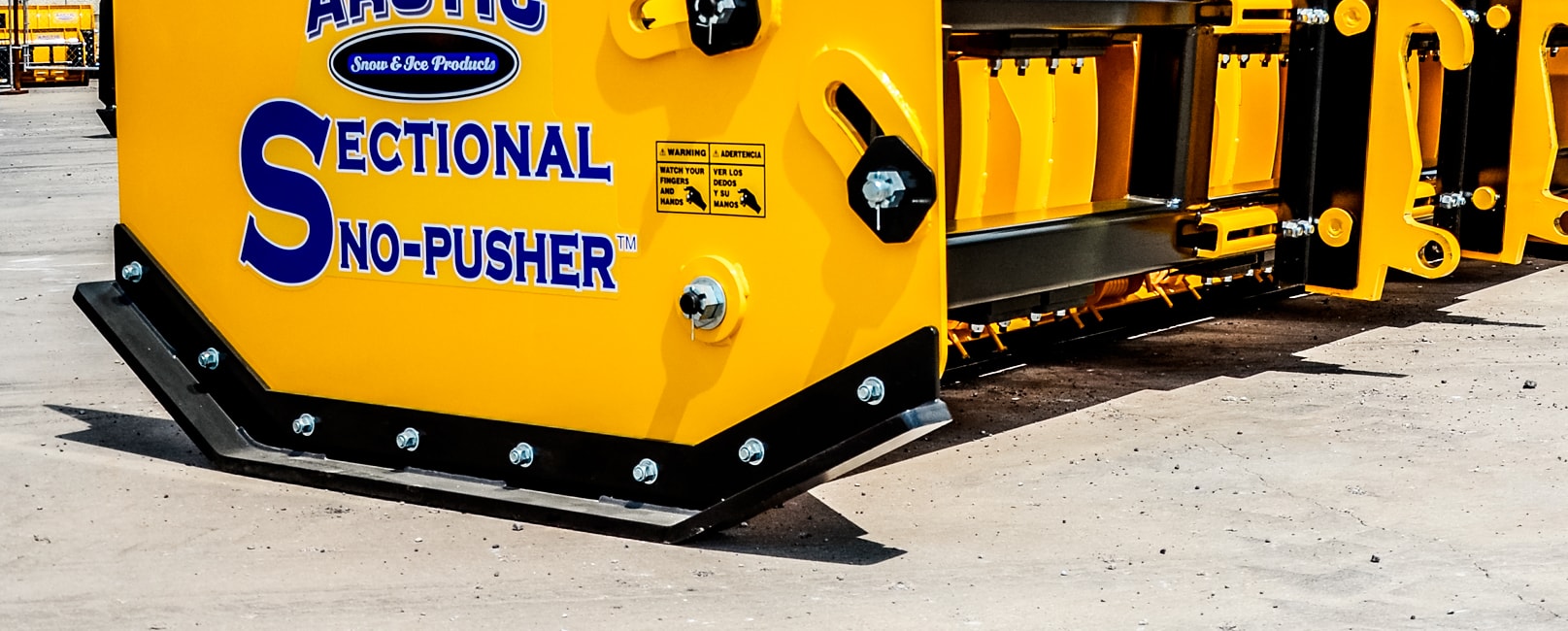

AR-400 Hardened Steel ShoesLay flat on the surface to prevent premature wear. -

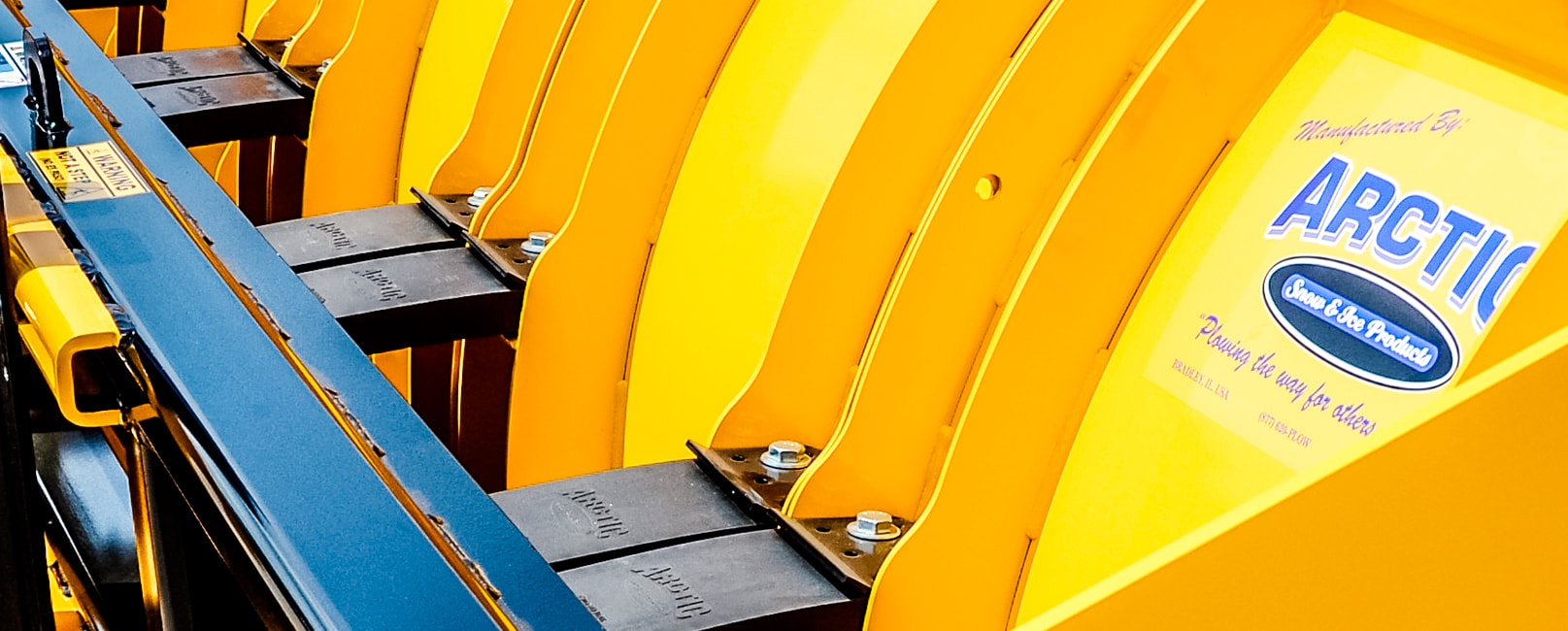

Polyurethane Mounting BlocksDurable, specially-engineered polyurethane mounting blocks secure each moldboard section to the pusher's mainframe, absorbing impact to protect the pusher, carrier and operator. Three torsion springs fasten to the steel cutting edge of each independent section.
Sectional Sno-Pusher™ Models
Find the one that fits your needs-
CDCD Series Pushers
EQUIPMENT WEIGHT UP TO 5,000 POUNDS
Pushers are compatible with small skid-steers, compact tractors and small wheel loaders and offer the perfect solution for clearing small parking lots, sidewalks and larger driveways. Designed by a veteran snow and ice removal contractor, the Sectional Sno-Pushers are unlike any snowplow you've ever used, combining the precision of a smaller pusher with the performance and capacity of a much larger unit. Whether you're new to the snow removal game, extending your summer landscaping or construction business into snow removal or a well-established contractor, the CD series offer a great solution for those small, tough to get into spaces. Our CD plows have successfully been serving customers in the facility management, agricultural and estate owner areas for years.
Pusher & Machine Sizing Chart
Model Weight Outside Width Height Depth CD6.5 974 lbs 78.5" 26" 50" CD8.5 1,025 lbs 102.5" 26" 50" Model CD6.5 CD8.5 Min. HP 35 45 Min. Lift Cap. (lbs.) 1200 1750 Equipment Bobcat 763 S185/T180 Case 410 420 Cat 216B Series 2 242B Series 2 Gehl SL5515 5240E John Deere 170 318D/CT322 New Holland LS150 C175/L170 Takeuchi TL20 TL230 Volvo MC80B MC80B -
LDLD Series Pushers
EQUIPMENT WEIGHT LESS THAN 15, 000 POUNDS
Pushers are compatible with several types of lighter-duty equipment including backhoes, skid steers, compact loaders, and tractors. The LD line is the mid-range line offering enhanced performance and size for those contractors looking to tackle some of the larger, more demanding snow removal jobs. The breadth of the LD line makes it the ideal match for a diversifying construction or landscape contractor looking for profitable way to utilize inactive equipment during the winter months.
Pusher & Machine Sizing Chart
Model Weight Outside Width Height Depth LD8 1,150 lbs 96" 32" 58" LD10.5 1,792 lbs 126" 32" 58" LD13 2,050 lbs 156" 32" 58" LD15.5 2,456 lbs 186" 32" 58" Model LD8 LD10.5 LD13 Min. HP 50 70 80 Min. Lift Cap. (lbs.) 1750 2000 2400 Equipment Bobcat S185/T180 S630 T300/S300 Case 420 430-450 465 Cat 416 242B Ser. 2 262C Gehl 5240E 5640E 6640E/CTL 75 John Deere 318D/CT322 326D/CT332 328D New Holland C175/L170 L180 C185/L185 Takeuchi TL230 TL240 TL250 Volvo MC80B MC90B MC110B Model LD10.5 LD13 LD15.5 Min. HP/Drive 70 HP/2WD 80 HP/4WD 85 HP/4WD Equipment Case 570 580-M 580 Super M/590 Cat 414 416/420 430/446 John Deere 210 310 310 SJ/410 New Holland B90 B90B B100B Volvo BL60 BL60 BL70 Model LD10.5 LD13 LD15.5 Min. HP 50 70 80 Equipment Case 21-E 221 321 Cat 902 906 908 Gehl AWS36 AWS36 John Deere 304 304 New Holland W50 W60 W70 Takeuchi L20B L30B Pro L30B Pro Volvo L-20 L-25 L-30 -
HDHD Series Pushers
EQUIPMENT WEIGHT MORE THAN 18,000 POUNDS
Pushers include a host of innovative features designed for maximum productivity, and are compatible with a variety of large equipment including wheel loaders, backhoes, skid-steers, tractors and telehandlers. Sectional Sno-Pusher’s HD line is ideal for professional snow and ice management professionals that face the difficult challenges of today’s squeezed profit margins and skyrocketing expenses. These pushers, along with the CD and LD models, boost profits by cutting fuel costs, labor and maintenance and repair bills while skyrocketing efficiency and customer satisfaction. The Sectional Sno-Pusher’s will give your business the competitive advantage you need to succeed in this difficult competitive environment.
Pusher & Machine Sizing Chart
Model Weight Outside Width Height Depth HD11.5 3,190 lbs 137.5" 47" 73" HD14 3,592 lbs 169.5" 47" 73" HD17 4,004 lbs 201.5" 47" 73" HD19 4,468 lbs 233.5" 47" 73" HD22 4,878 lbs 265" 47" 73" HD27.5 5,288 lbs 329.5" 47" 73" Model HD11.5 HD14 HD17 Min. Machine Class 1.5 YD 2 YD 2.5 YD Equipment Case 521 621 621/721 Cat 914/IT14 918/924 924/930 John Deere 444 524 544 New Holland W110 W110/W130 W130 Volvo L-60 L-60 L-70 Model HD19 HD22 HD27.5 Min. Machine Class 3 YD 4.5 YD 5 YD Equipment Case 721 821 921 Cat 930/938 938 950/IT62 John Deere 624 644 724/744 New Holland W130 W170 W190B Volvo L-90 L-110 L-120

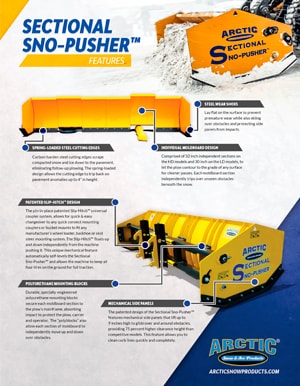

Sectional Sno-Pusher™ Brochure
Download
